Our aluminium profiles can be powder-coated in wood-look finishes — teak, walnut, light oak — for a premium wooden appearance with zero maintenance.
Antique Wood
Light Oak
Luxury
Rich Walnut
Teak
Vintage
Walnut| Material | SS 304 brackets/studs + BIS toughened/laminated glass + aluminium handrails (no bottom rail for staircase) |
|---|---|
| Also known as | Glass staircase railing, duplex railing, villa railing, glass balustrade, modern staircase handrail |
| Best for | Duplex homes, villas, commercial lobbies, office buildings, luxury interiors |
| Mounting | SS 304 brackets/studs (no bottom rail — glass is mounted directly into stringer or side wall) |
| Max Height / Length | Standard 36–42" residential, 42–48" commercial; length as per staircase run |
| Pillar Spacing | Every 3 ft — SS 304 grade (8mm / 6mm patti) |
| Price Range | ₹650 – ₹3,000 per RFT (profile + glass + hardware + handrail + coating) |
| Configurations | Straight, L-shaped, U-shaped, spiral and curved staircase support |
| Maintenance | Low — periodic glass cleaning, check post and clamp tightness |

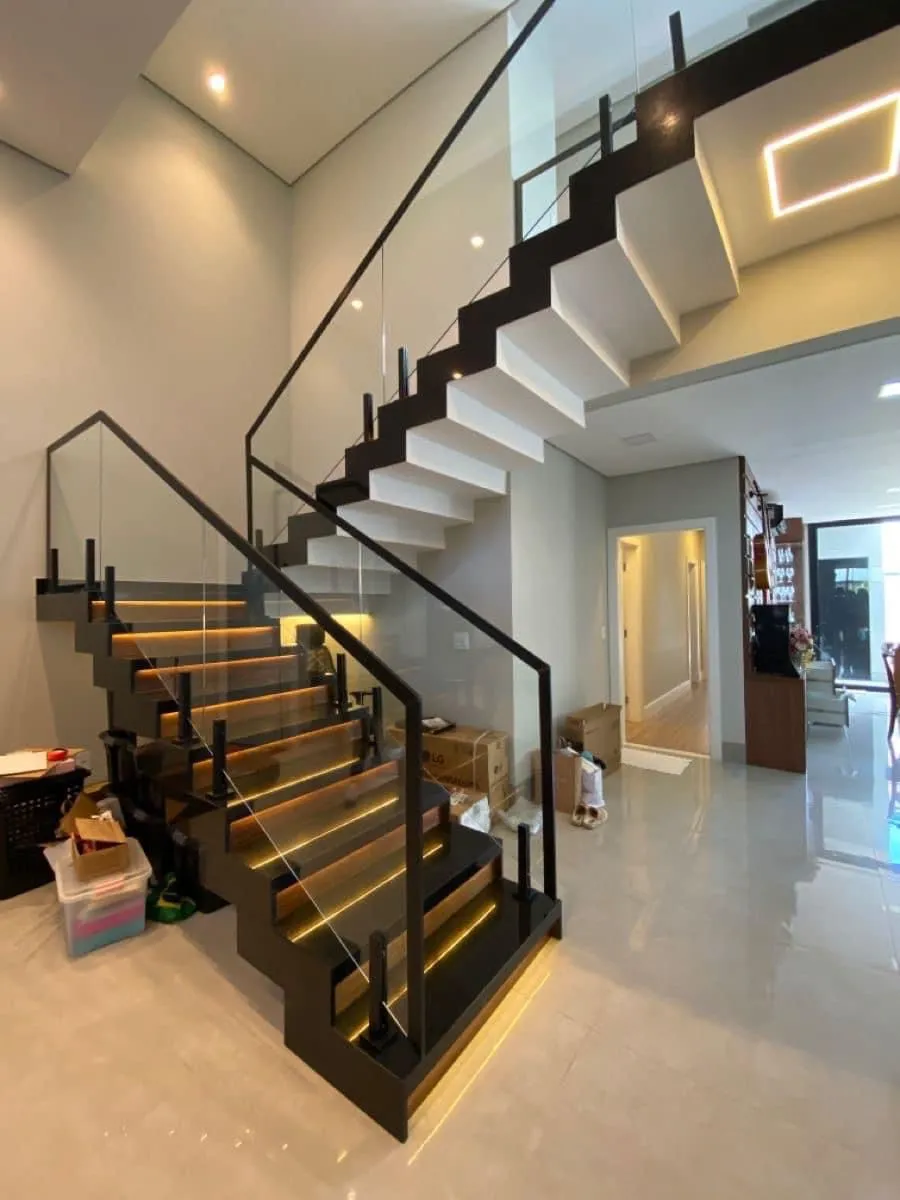

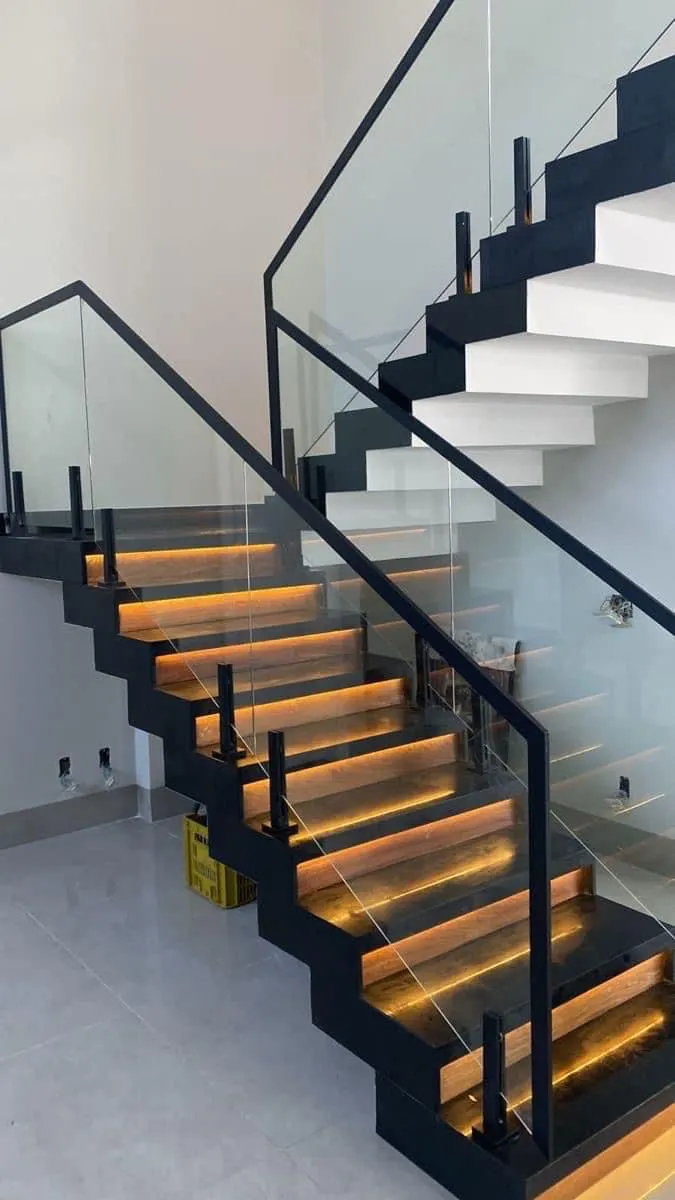

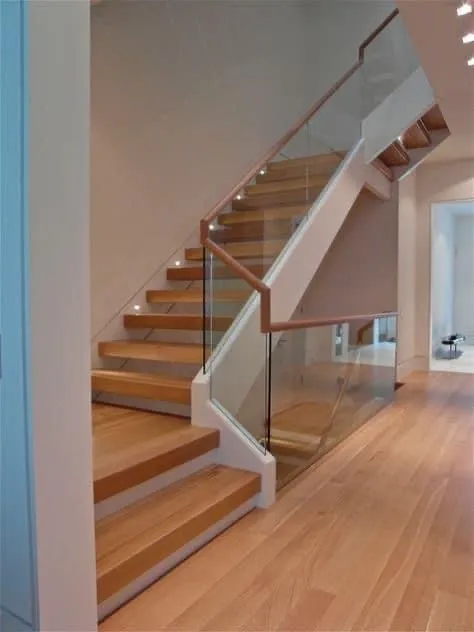

Our staircase glass railing systems are designed for modern Indian homes and commercial interiors. Each railing combines precision-cut toughened glass panels with SS 304 or aluminium posts, glass clamps and handrails. The system supports straight, L-shaped, U-shaped and even curved staircase configurations. Glass panels are cut to match the staircase angle with proper overlap at joints for a seamless appearance.
Staircase railings are subjected to higher impact loads than balcony railings — we use thicker glass, closer post spacing and structural-grade hardware to ensure long-term safety. Custom decorative posts, special handrail profiles and unique mounting brackets are fabricated in-house per customer design.
All hardware is Indian-made using high-grade stainless steel (SS 304) and 6063-T6 aluminium alloy. Glass is BIS-standard processed with polished and chamfered edges. We deliver complete design-to-installation solutions across Hyderabad and pan-India.
| Feature | Glass Railing | SS Pipe Railing | Iron Railing |
|---|---|---|---|
| Look | Transparent, modern, open feel | Sleek metallic, industrial | Traditional, ornate options |
| Safety | Full barrier — no gaps for children | Horizontal bars — climbable | Vertical bars — safer design |
| Light flow | Maximum light transmission | Partial light blocking | Significant light blocking |
| Maintenance | Glass cleaning only | Fingerprint cleaning | Rust prevention, repainting |
| Durability | 15–20 years (toughened) | 15–20 years (SS 304) | 8–12 years (with maintenance) |
| Cost per RFT | ₹1,500 – ₹3,000 | ₹800 – ₹1,500 | ₹500 – ₹1,200 |
Glass railings offer the best combination of safety, aesthetics and light flow for modern staircases. SS pipe is more affordable; iron is best for traditional designs.
Standard staircase railing height is 36–42 inches for residential and 42–48 inches for commercial buildings. The calculator automatically excludes bottom rail when "Staircase" type is selected.
| Pillar Size | Spacing | Suitable For |
|---|---|---|
| 8 inch | Every 3 ft | Balcony, Staircase |
| 6 inch | Every 3 ft | Balcony, Staircase |
| 4 inch | Every 3 ft | Balcony, Staircase |
| Stud Size | Mounting | Suitable For |
|---|---|---|
| 50 × 50 mm Round | Every 1 meter, 2 pcs (upper + lower, 3–6" apart) | Balcony / Staircase beam face |
| 38 × 50 mm Round | Every 1 meter, 2 pcs (upper + lower, 3–6" apart) | Balcony / Staircase beam face |
| Handrail Size | Weight / RFT | Standard Lengths |
|---|---|---|
| 12 × 19 mm Slim | 0.230 kg | 13 ft / 16 ft |
| 25 × 25 mm Slim | 0.330 kg | 13 ft / 16 ft |
| 38 × 38 mm Sqr / Round | 0.400 kg | 13 ft / 16 ft |
| 50 × 50 mm Sqr / Round | 0.510 kg | 13 ft / 16 ft |
| Glass options | 8mm, 10mm, 12mm toughened clear; 11.52mm / 13.52mm laminated |
|---|---|
| Pillar spacing | Every 3 ft centre-to-centre (SS 304 grade, 8mm / 6mm patti) |
| Finish options | Plain, textured, wood-look powder coat (AkzoNobel/Zotun exterior grade) |
| Sealing | EPDM gaskets + structural silicone at all glass-to-metal joints |
| Fixing | Stringer mount, floor mount with M12 chemical anchors, side mount with through-bolts |
| Staircase types | Straight, L-shaped, U-shaped, spiral, curved — custom panel cutting per angle |
| Custom hardware | Decorative posts, special castings, bracket designs and unique mounts on request |
| Horizontal load | Railing must withstand 1.5 kN/m at handrail height per IS 875 Part 2 |
|---|---|
| Impact resistance | Toughened glass withstands soft body impact per EN 12600; laminated retains fragments |
| Glass edge | All edges polished and chamfered; edges in clamps protected by EPDM neoprene |
| Anchor depth | Minimum 100mm embedment for M12 chemical anchors in concrete/RCC stringer |
| Post stiffness | Posts designed for max deflection of L/60 under rated horizontal load |
| Angle cuts | Glass panels cut to match staircase angle (typically 30°–45°) with ±1mm tolerance |
All structural calculations are performed per Indian building norms. Engineering drawings, glass panel layouts and hardware schedules provided for every project.
Loading pricing...
| What glass is best for staircase railings? | |
| Can staircase glass railing handle curved stairs? | |
| What handrail options are available? | |
| How is staircase glass railing priced? | |
| Is staircase glass railing safe for homes with children? | |
| How long does installation take? |
Glass staircase railings transform dark, enclosed staircases into bright, open spaces. Unlike iron railings that rust and require periodic repainting, or SS pipe railings with horizontal bars that children can climb, glass panels create a seamless full-height safety barrier with maximum light flow. Toughened glass is 5 times stronger than regular glass — even if broken, it shatters into small harmless granules. Laminated glass offers an additional safety layer by holding fragments together. For balcony and terrace railings, see our balcony glass railing; for outdoor shade, check retractable pergola and aluminium pergola.
Modern glass railings increase property value and create a premium impression that traditional railings cannot achieve. Combined with SS or aluminium hardware, glass staircase railings deliver 15–20 years of maintenance-free performance.
All structural calculations are performed considering local load factors as per Indian building norms. Engineering drawings, glass panel layouts and hardware schedules can be provided upon request for every project.
We install staircase glass railings in Hyderabad, Bangalore, Mumbai, Pune, Chennai, Delhi NCR, Kolkata, Ahmedabad and across India. In Hyderabad, heat-resistant coating and dust-easy-clean glass for terrace staircases. In Bangalore, rain drainage design and villa staircase railings for monsoon conditions. In Mumbai, high-rise safety compliance and compact profiles for space-constrained buildings. Site survey in Hyderabad; pan-India fabrication and installation. WhatsApp or call for quote.
For site survey, custom hardware design and quotation contact our Hyderabad office. We provide design-driven installations and after-sales service.
